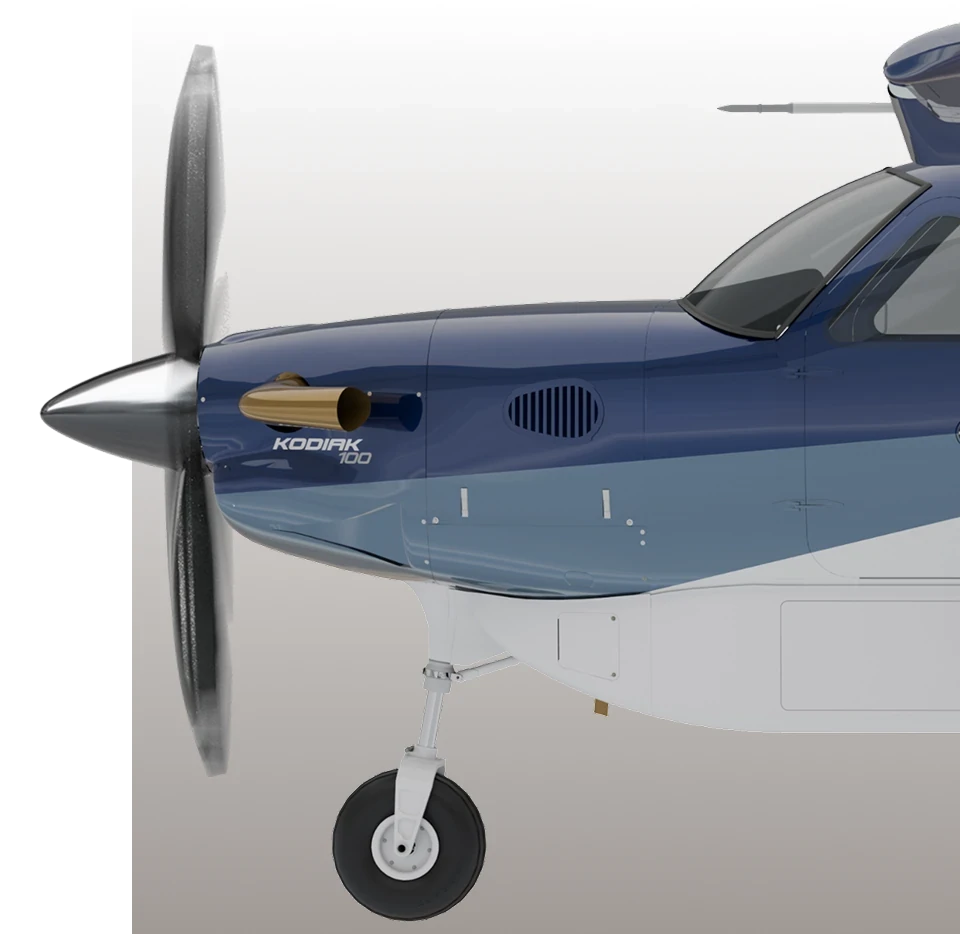

At the heart of the Kodiak 100, the Pratt & Whitney Canada PT6A-34 works alongside Hartzell’s five-blade composite propeller to deliver dependable performance, greater comfort, and the confidence to operate beyond conventional runways.
Delivering 750 shaft horsepower, the PT6A-34 provides the power needed to carry passengers, equipment, and cargo into demanding environments. Its performance is there when it matters most — during takeoff, climb, and operations from short or challenging airstrips.
Designed specifically for Kodiak aircraft, the five-blade Hartzell composite propeller reduces takeoff roll by 6% at maximum gross weight. A real advantage when every foot of runway matters.
Turning more slowly than the four-blade metal propeller, the five-blade design reduces noise and vibration. The result is a smoother, quieter experience for everyone on board — and a lower noise footprint on the ground.
At sea level in ISA conditions, MTOW, with 50-ft obstacle clearance, without cargo pod
| Takeoff ground roll | 934 ft | 285 m |
| Landing ground roll | 765 ft | 233 m |
At sea level in ISA conditions, MTOW, with 50-ft obstacle clearance, with Aerocet 6650 floats equipped
| Takeoff ground roll | 1,507 ft | 460 m |
| Takeoff on water | 2,332 ft | 712 m |
| Landing ground roll | 2,046 ft | 625 m |
| Landing on water | 3,061 ft | 935 m |
ISA Conditions, MTOW, without cargo pod
| Max cruise speed at 12,000 ft | 174 KTAS | 322 km/h |
| Max cruise speed at long range settings | 135 KTAS | 250 km/h |
| Rate of climb | 1,340 ft/min | 6.8 m/s |
ISA Conditions, MTOW, with Aerocet 6650 floats equipped
| Max cruise speed at 12,000 ft | 162 KTAS | 300 km/h |
| Max cruise speed at long range settings | 126 KTAS | 239 km/h |
| Rate of climb | 1,340 ft/min | 6.8 m/s |
ISA Conditions, 12,000 ft, with 45 min reserve
| Range at 174 KTAS cruise speed | 1,005 NM | 1,861 km | 8.4 hrs |
| Range at 135 KTAS cruise speed | 1,132 NM | 2,096 km | 5.8 hrs |
| Range at maximum endurance | 944 NM | 1,748 km | 9.9 hrs |
ISA Conditions, 12,000 ft, with 45 min reserve, with Aerocet 6650 floats equipped
| Range at 174 KTAS cruise speed | 939 NM | 1,839 km | 5.4 hrs |
| Range at 126 KTAS cruise speed | 993 NM | 1,739 km | 7.9 hrs |
| Range at maximum endurance | 572 NM | 1060 km | 6 hrs |

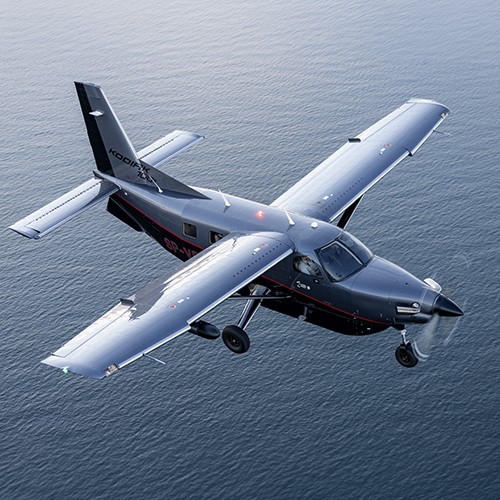

At the heart of the Kodiak 100's exceptional handling characteristics is a distinctive wing design unlike any other in its class. The discontinuous leading-edge design combines two high-performance airfoils that work together to maintain predictable handling and controllability throughout the flight envelope.
As airspeed decreases, the wing's unique aerodynamic characteristics enable the aircraft to retain roll authority at speeds approaching stall conditions, providing pilots with added confidence during slow-flight operations. Vortex generators on both the wing and horizontal stabilizers further enhance low-speed performance by improving airflow and delaying aerodynamic stall.
The result is an aircraft that combines exceptional short-field capability with handling qualities that inspire confidence during every phase of flight. This predictable behavior is a benefit for all pilots, whether they are high-time aviators or with less experience and stepping into the Kodiak category, as well as for those transitioning from rotary-wing aircraft – which is especially important for the law enforcement sector.
The autopilot control panel integrates advanced safety features, including Electronic Stability Protection (ESP), Level Mode, Underspeed Protection, and Coupled Go-Around capabilities, helping reduce pilot workload while enhancing safety and confidence throughout every phase of flight.
Standard features like Synthetic Vision and an integrated moving map provide essential flight information—including traffic, terrain, weather, navigation aids, and obstacles. A frequency identifier displays the name of the tuned facility for added clarity, while available SurfaceWatch technology enhances runway safety.
Enhances situational awareness and flight planning with a Vertical Situation Display that provides a graphical view of the aircraft’s altitude. Integrated weight-and-balance tools allow pilots to calculate loading directly in the cockpit, while flexible moving map options display terrain, sectional, and IFR charts.
Wirelessly connects the Garmin G1000 NXi to compatible mobile devices, streamlining flight planning, database updates, and information sharing between the cockpit and a device.
Provides intuitive control of the aircraft’s ice protection systems, allowing pilots to quickly monitor and manage anti-ice and de-ice functions for safer operation in challenging weather conditions.

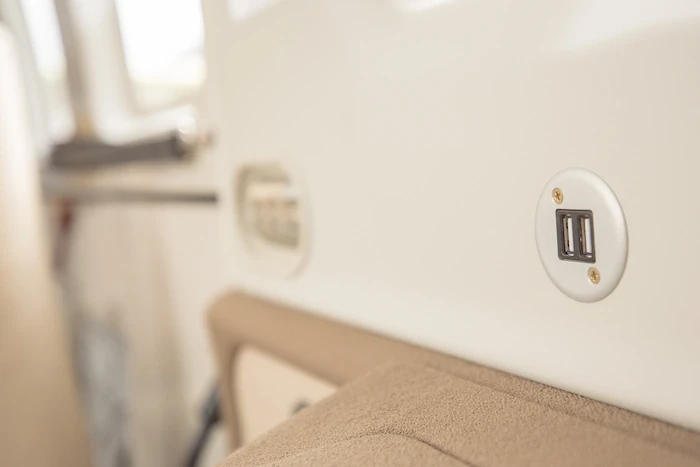

The cabin customization interface provides quick and intuitive control of key cabin settings, allowing occupants to create the ideal environment for every journey.
Dedicated backup instruments ensure flight data remains available at all times, enhancing safety and providing an additional layer of confidence in every operating environment.

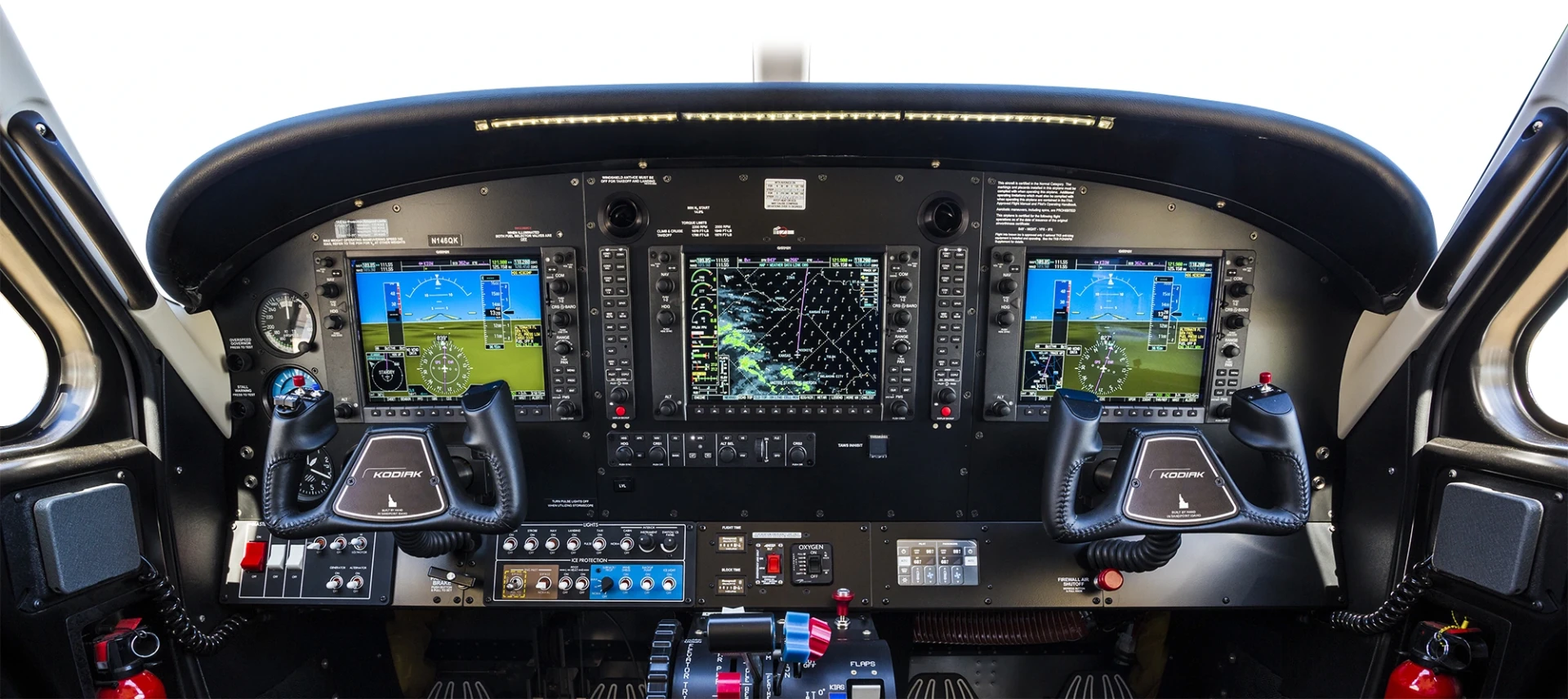

The Kodiak 100’s Garmin G1000 NXi integrated flight deck brings essential flight information together through a clear, intuitive interface. Synthetic Vision, SurfaceWatch and the GFC 700 autopilot help increase situational awareness and reduce workload from takeoff to touchdown. Designed around the pilot, the cockpit keeps every control within easy reach — so attention stays where it belongs: on the flight and the mission ahead.
Go further in your discovery of the Kodiak 100 with our collection of brochures, guides, and technical resources. Explore its performance, mission versatility, STOL capabilities, cabin configurations, and advanced technology through detailed product literature.
A family escape, a remote community to reach, cargo to deliver or a mission that cannot wait — the Kodiak 100 adapts to what the day demands.
Its flexible cabin can transition between passenger seating, cargo transport and specialized layouts for medevac, surveillance, humanitarian support and other demanding operations. A large cargo door makes loading straightforward, while the optional cargo pod provides additional storage without taking up valuable cabin space.
From personal adventures to professional and government missions, the Kodiak 100 gives every journey a new purpose.
The Kodiak 100 was made to take you beyond the ordinary. From remote airstrips to open water, its rugged design, short takeoff and landing capabilities, and float-ready construction open up destinations few aircraft can reach. No conventional runway? No problem. With the Kodiak 100, the most memorable experiences often begin where the map runs out.
The Kodiak 900’s spacious cabin gives every passenger room to relax and enjoy the journey. Generous legroom and a thoughtfully designed layout create a comfortable environment where everyone can travel with ease.
Mounted on quick-adjust seat rails, the seats can be easily repositioned to optimize legroom, cargo space, or passenger capacity, allowing the cabin to adapt seamlessly to every mission.
Refined over successive generations of Kodiak aircraft, the latest seat design delivers improved comfort and support, making every flight more enjoyable for pilots and passengers alike.
The Kodiak 900’s tall cabin provides exceptional headroom throughout the interior, creating a more open and comfortable environment for every passenger. The generous cabin height helps occupants feel less confined, enhancing overall comfort during both short trips and long journeys.
Provides personalized support and optimal seating comfort for passengers of all sizes, helping reduce fatigue and enhance the overall travel experience.
Independent airflow controls for the cockpit and cabin allow pilots and passengers to maintain their preferred comfort levels, ensuring a pleasant environment throughout the flight.

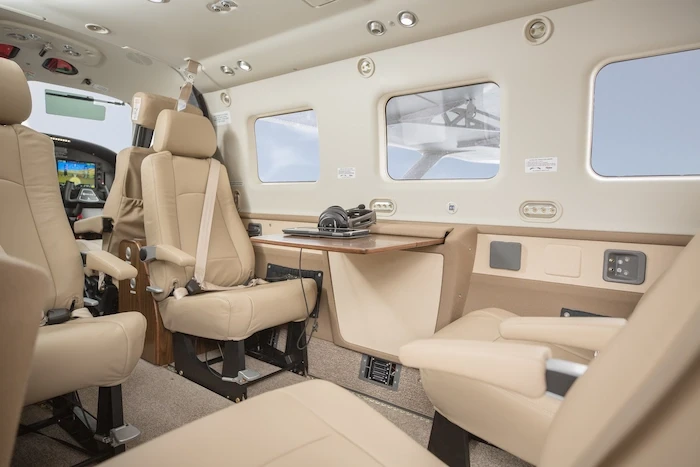

Convenient fold-down tables on both sides of the cabin provide a practical surface for working, dining, or organizing personal items, enhancing comfort and versatility throughout the flight.
It provides easy and convenient access to the cabin, simplifying boarding and unloading while maintaining the aircraft’s rugged utility and clean exterior design

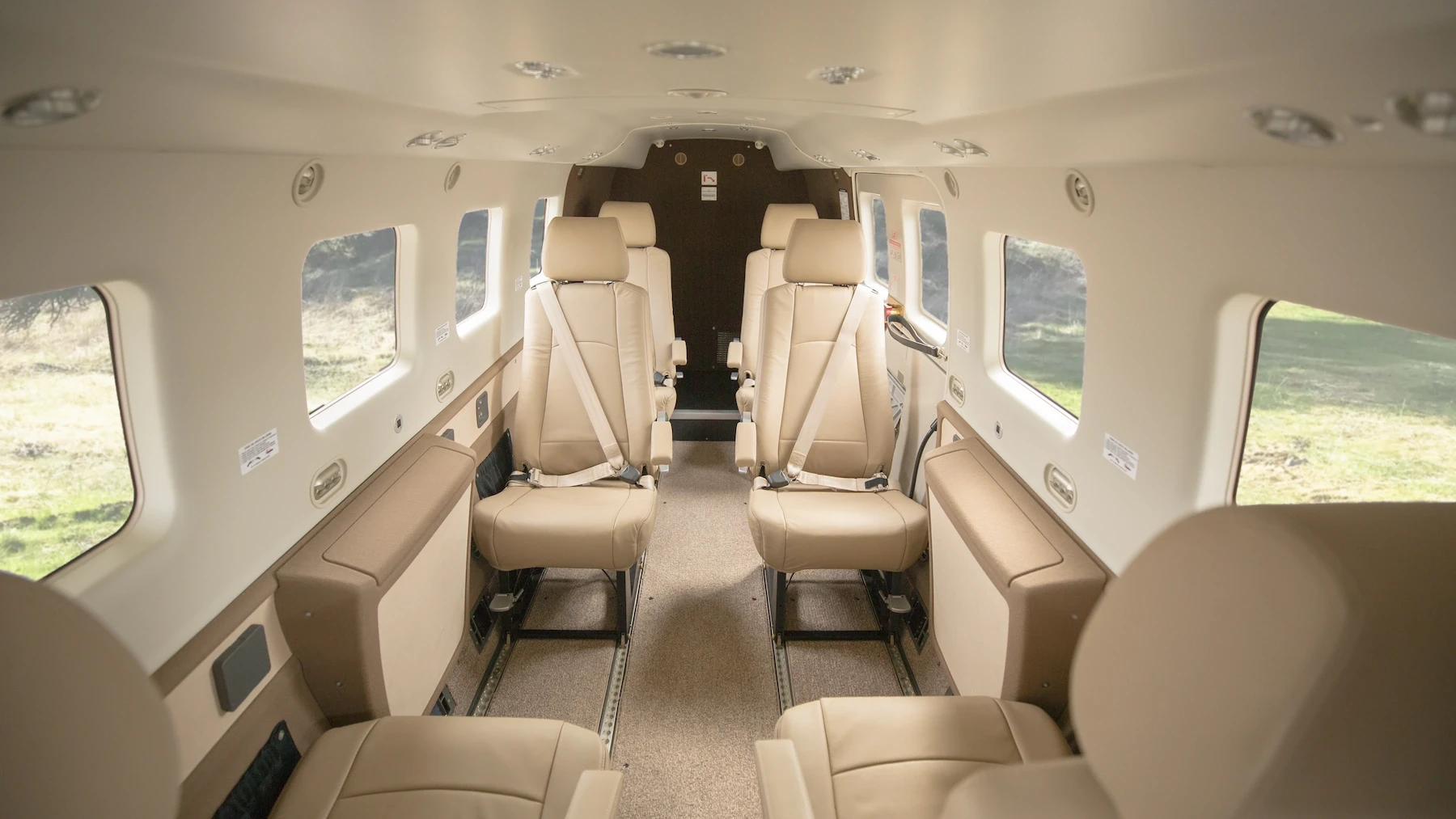

The Kodiak 100 cabin is designed around the people, gear, and experiences brought on board. Fully adjustable seating and panoramic windows create a comfortable, open environment, while the flexible layout makes it easy to transition from passenger needs to cargo or mission-specific operations. Wherever the day takes you, the cabin adapts — without asking any compromise on comfort or capability.

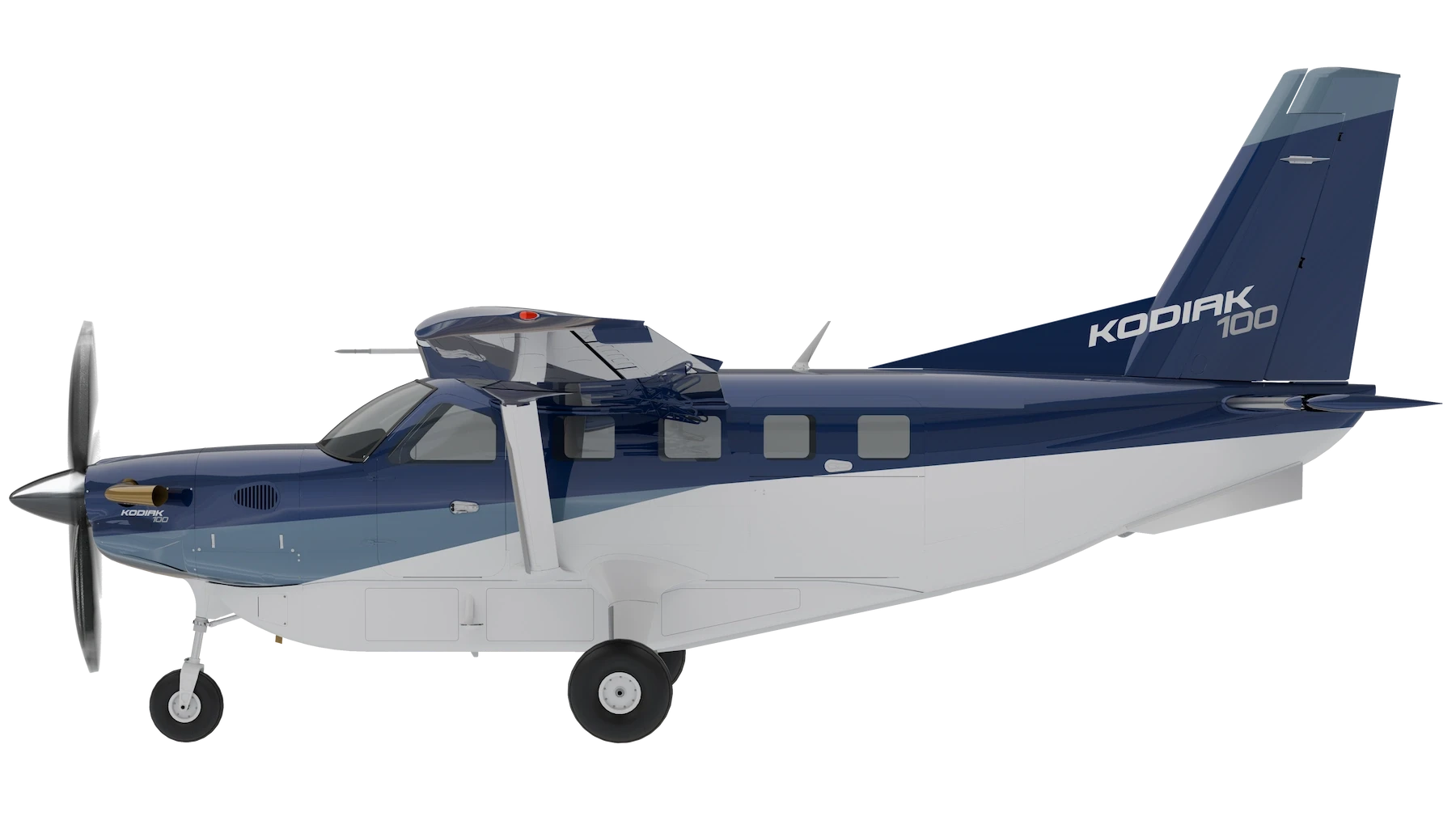

Explore the available paint schemes and color combinations to find the look that could suit the best the Kodiak 100. For something entirely unique, our sales team can help explore custom designs and premium finishes in relation with professional designers
